How to Prevent Moisture Ingress in Outdoor Industrial Cable Assembly ...

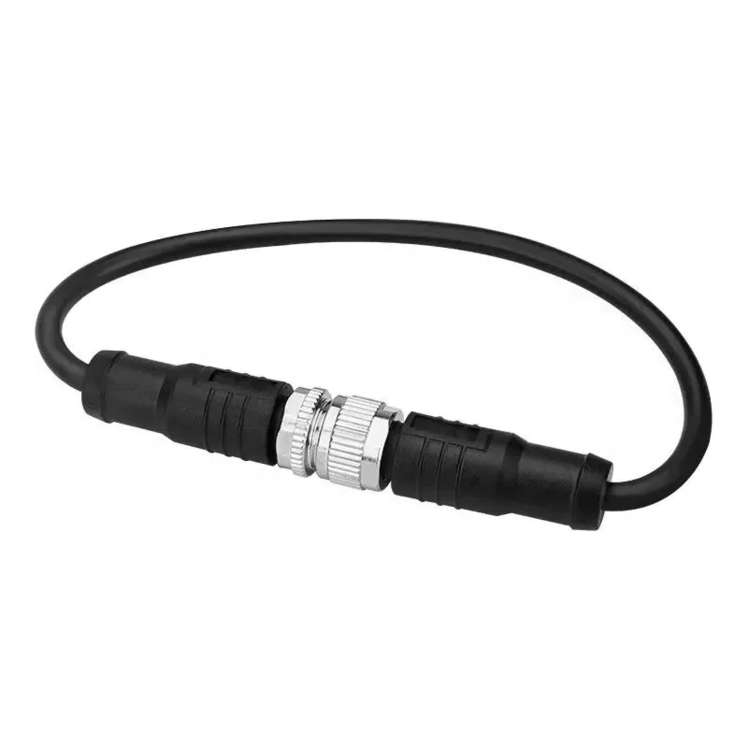

Moisture inside outdoor cable terminations is a leading cause of failure in industrial settings. It leads to corrosion, short circuits, insulation breakdown, and costly downtime. Preventing water ingress is essential for reliability and safety. Here’s how to do it effectively:

1. Select the Right Sealing Technology:

• ​Heat-Shrink Tubing: The gold standard for outdoor terminations. Choose dual-walled tubing with an internal adhesive lining (mastic) that melts and flows to create a watertight, environmental seal around the cable and connector. Ensure it meets IP68 or IP69K ratings for submersion/protection.
• ​Molded Rubber Boots/Seals: Excellent for consistent cable/connector geometries. Look for high-quality EPDM or silicone boots specifically designed for environmental sealing. Ensure the rubber is soft enough to compress and conform.
• ​Encapsulating Resins/Potting Compounds: Ideal for complex or irregular shapes. Two-part epoxy or polyurethane resins are poured into a housing surrounding the termination, forming a solid, waterproof barrier. Choose compounds with low viscosity for good flow and high dielectric strength.
• ​Self-Amalgamating (Self-Fusing) Tape: Useful for repairs or sealing joints. This rubber-based tape bonds permanently to itself (but not the cable) when stretched and wrapped tightly. Always finish with a durable outer layer like vinyl or electrical tape for UV and abrasion protection.
• ​Gel-Filled Connectors: Contain a dielectric gel inside the connector body designed to displace water and seal around inserted conductors/cables under pressure.

2. Prioritize Proper Installation (This is Critical!):

• ​Surface Prep is Paramount: Clean, dry, and abrade! Remove all contaminants (dirt, grease, oxidation) from the cable jacket and connector mating surfaces. Use recommended abrasion pads or solvent wipes provided in kits. Any residue compromises the seal.
• ​Correct Shrinkage for Heat-Shrink: Use a proper heat gun (not a lighter!). Apply heat evenly, moving constantly to avoid hotspots. Ensure the mastic flows visibly around the base of the connector and up the cable jacket. Shrink tubing ends slightly onto the connector body for maximum strain relief and seal.
• ​Tight Wrapping for Tape: Stretch self-amalgamating tape to 50-75% of its width while wrapping tightly with 50% overlap. Apply constant tension. Cover all underlying layers completely. Seal the end securely. Apply the protective outer layer immediately.
• ​Follow Manufacturer Instructions Precisely: Adhere strictly to torque settings for connectors, mixing ratios/cure times for resins, temperature ranges for heat-shrink, and specific prep steps. Don’t improvise.

3. Address Environmental & Mechanical Stress:

• ​Strain Relief: Ensure the termination is properly clamped/secured. Use cable glands, boots with integrated strain relief, or external clamps to prevent movement/vibration that can fatigue and break seals over time. Route cables to minimize bending stress near the termination.
• ​Drip Loops: Form a small downward loop (drip loop) in the cable just before it enters a connector or enclosure. This prevents water running down the cable jacket from flowing directly into the termination point.
• ​UV Protection: If the sealing method itself isn’t UV stable (e.g., self-amalgamating tape), ensure the outer protective layer (like vinyl tape or heat-shrink overbraid) provides UV resistance. UV degrades most materials over time.
• ​Chemical Exposure: In harsh chemical environments, verify the sealing materials (rubber, adhesive, resin) are chemically resistant to specific contaminants present.

4. Implement Regular Inspection & Maintenance:

• ​Visual Checks: Schedule routine inspections. Look for cracks in resins/tapes, signs of lifting or shrinkage in heat-shrink, hardening or cracking of rubber boots/seals, and any visible corrosion or moisture residue.
• ​Feel for Compromise: Gently probe seals (without damaging them) to check for hardness, brittleness, or lack of adhesion that might indicate seal failure.
• ​Replace Proactively: Don’t wait for a failure. If seals show significant aging (cracking, hardening, discoloration) or signs of minor leakage, schedule replacement during planned downtime.

Key Principles for Success:

• ​Clean & Dry: The foundation of any good seal.
• ​Material Matters: Choose components rated for the specific environment (IP rating, temp range, UV, chemicals).
• ​Installer Skill & Diligence: The best products fail with poor installation. Training matters.
• ​Strain Relief is Non-Negotiable: Prevent physical stress on the seal.
• ​Vigilance: Inspect regularly to catch problems early.

By systematically choosing the right sealing technology, executing a meticulous installation, protecting against environmental stresses, and performing proactive maintenance, you can effectively prevent moisture ingress and ensure the long-term reliability of your critical outdoor industrial cable terminations.
