Industrial Cable Assemblies for 5G-Enabled Smart Manufacturing: Desig...

The rise of 5G-enabled smart factories promises unprecedented levels of automation, real-time control, and IoT connectivity. However, the critical infrastructure enabling this revolution – industrial cable assemblies – faces unique design hurdles to harness 5G’s full potential. Here are the key challenges and practical solutions:

1. ​Severe Electromagnetic Interference (EMI):
   • ​Challenge: Smart factories are dense electrical environments with powerful motors, VFDs, and wireless devices, generating intense EMI. This can corrupt the high-frequency signals used by 5G (especially FR1 frequencies ≤ 6 GHz, common in industrial settings) within cables.
   • ​Solutions:
     • Implement ​360° continuous, high-coverage braided shielding (e.g., tinned copper braid) combined with robust overall cable shield design.

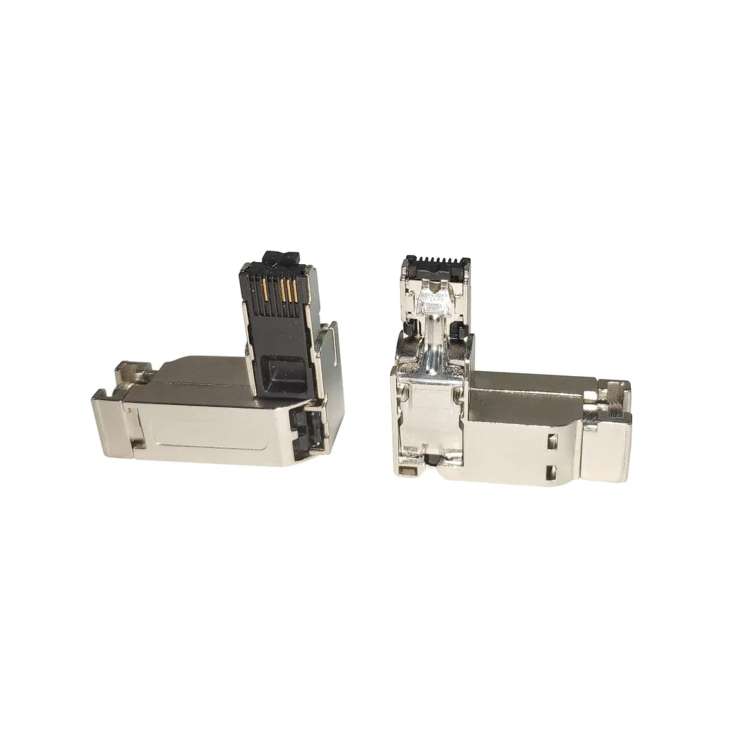

     • Use connectors with ​metallic backshells, ensuring seamless 360° shielding connection via proper cable gland integration.
     • Specify cables tested and certified for performance in demanding ​industrial EMI environments.
2. ​Harsh Physical Conditions (Vibration, Flexing, Contaminants):
   • ​Challenge: Robots, AGVs, and machinery subject cables to constant vibration, dynamic flexing, bending, crushing forces, and exposure to coolants, oils, and metal shavings.
   • ​Solutions:
     • Select cables with ​robust, flexible outer jackets made from materials like PUR (polyurethane) or modified PVC, offering excellent abrasion, cut, and chemical resistance.
     • Ensure cables are rated for ​high flex life (e.g., >5 million cycles for continuous motion) and torsional strain where applicable.
     • Specify IP67-rated or higher ​connectors and assemblies to prevent ingress of dust, liquids, and other contaminants.
3. ​Signal Integrity at High Frequencies:
   • ​Challenge: 5G requires transmitting data at very high speeds (>1 Gbps for industrial use cases). Signal loss (attenuation), reflections, and timing skew become critical issues over cable lengths.
   • ​Solutions:
     • Use ​low-loss dielectric materials and precision ​controlled impedance designs optimized for target frequencies (e.g., CAT6A, CAT7, or specialized RF cables for 5G antennas).
     • Employ ​precision-engineered connectors with excellent high-frequency characteristics and minimal signal reflection.
     • ​Carefully plan cable routing and lengths to minimize unnecessary distance and signal degradation; consider active components strategically.
4. ​Extreme Temperature Demands:
   • ​Challenge: Environments near furnaces, welders, or high-power electronics can expose cables to extreme heat, while outdoor sections or cold storage areas face sub-zero conditions.
   • ​Solutions:
     • Specify cables with ​broad operating temperature ranges (e.g., -40°C to +85°C or higher) using suitable insulation and jacketing materials (XLPE, specific PUR formulations).
     • Ensure ​connector materials (inserts, seals, housings) can withstand the same temperature extremes without degrading or cracking.
5. ​Reliable Power Delivery and Mixed Signals:
   • ​Challenge: Many industrial devices (sensors, actuators, cameras) require both data connectivity and power over the same cable or assembly (PoE/PoDL). Integrating power conductors alongside high-speed data lines without interference is complex.
   • ​Solutions:
     • Employ ​optimized hybrid/hybrid cable designs that combine adequate power conductors and shielded data pairs, minimizing crosstalk and heat buildup.
     • Use cables rated for the ​required voltage and current handling, ensuring compliance with standards like IEC 60502 or UL.
     • Specify connectors rated for the combined ​power and signal requirements.
6. ​Connector Reliability Under Stress:
   • ​Challenge: Industrial connectors must maintain secure electrical connections despite constant vibration, thermal cycling, and physical knocks, preventing signal dropouts or power interruptions.
   • ​Solutions:
     • Choose connectors with ​proven, secure locking mechanisms (screw-type, bayonet, push-pull) suited for vibration resistance.
     • Use connectors featuring ​environmental sealing (IP67, IP69K) and constructed from ​robust materials (metal housings, ruggedized plastic).
     • Prefer ​modular connector systems that offer high density while ensuring reliable mating cycles, potentially using spring contacts for vibration resistance.

Key Considerations When Sourcing:

• ​Certification & Compliance: Verify cables meet relevant ​UL, CE, IEC, and specific ​EMC/EMI standards for industrial use and target frequencies.
• ​Application-Specific Design: Tailor choices – robust jacketing for machinery, extreme flex cables for robots, hybrid cables for IPCs.
• ​Manufacturer Expertise: Partner with suppliers who understand industrial and RF challenges, offer design support, and provide robust warranties and testing data.
• ​Scalability & Consistency: Ensure consistent quality and supply chain reliability for large-scale deployments.

Conclusion:

Successfully deploying 5G in manufacturing hinges on overcoming cable assembly design challenges through specialized materials, robust construction, advanced shielding, and rigorous connector selection. By proactively addressing EMI, physical harshness, signal integrity, and harsh environment demands with the solutions outlined, manufacturers can build resilient, high-performance connectivity – the vital nervous system for their smart factories. Focus on precise engineering requirements and collaboration with proven industrial cable partners is essential.
