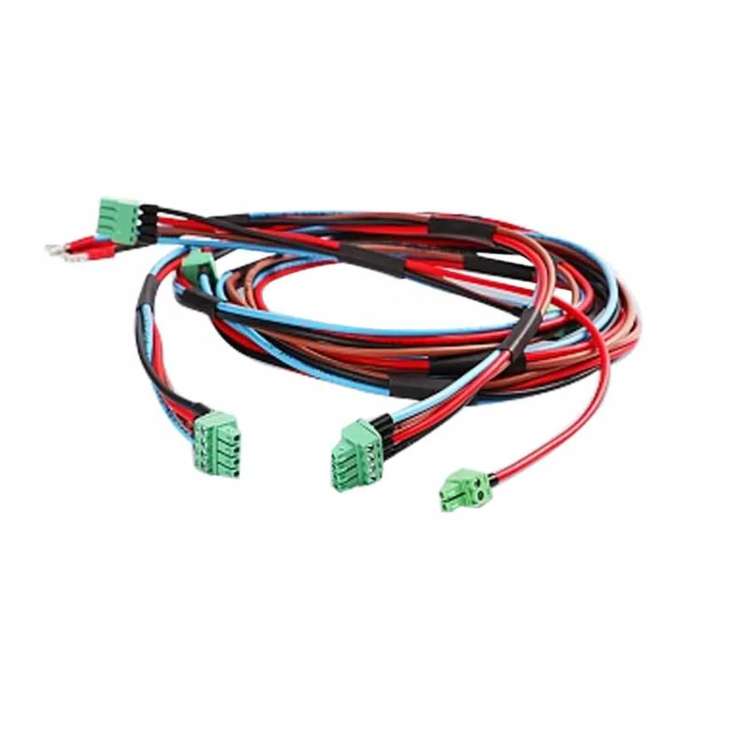

Signal Integrity Solutions for Cable Assemblies in Harsh Environments

Modern industries—from aerospace and defense to industrial automation and renewable energy—rely on cable assemblies to transmit critical data and power across systems. However, harsh environments characterized by extreme temperatures, moisture, vibration, electromagnetic interference (EMI), and chemical exposure can degrade signal integrity, leading to system failures. This article explores proven solutions to maintain signal integrity in cable assemblies operating under demanding conditions.

​1. High-Performance Materials for Robust Cable Design

The foundation of signal integrity in harsh environments lies in selecting materials engineered for resilience:

• ​Thermally Stable Insulation: Materials like PTFE (Polytetrafluoroethylene), FEP (Fluorinated Ethylene Propylene), and PFA (Perfluoroalkoxy) withstand temperatures from -65°C to +260°C while maintaining dielectric properties.
• ​Abrasion-Resistant Jackets: Polyurethane (PUR) or cross-linked polyethylene (XLPE) jackets protect against mechanical stress, UV radiation, and chemicals.
• ​Conductive Shielding Layers: Foil, braided, or spiral shields (e.g., aluminum, copper) minimize EMI/RFI interference, which is critical in environments with high electromagnetic noise.

​2. Advanced Shielding Techniques

Electromagnetic interference (EMI) is a primary threat to signal integrity. Multi-layered shielding strategies ensure minimal signal loss:

• ​Double/Triple Shielding: Combining foil and braided shields creates overlapping protection. For example, a foil layer cancels low-frequency interference, while a braided shield blocks high-frequency noise.
• ​Drain Wires: Integrated into foil shields to provide a low-resistance path for grounding stray currents.
• ​Ferrite Cores: Added near connectors to suppress high-frequency EMI in applications like motor drives or wireless communication systems.

​3. Connector and Termination Optimization

Connectors are common failure points in harsh environments. Key design considerations include:

• ​Hermetic Sealing: IP67/IP69K-rated connectors with silicone gaskets or O-rings prevent moisture and dust ingress.
• ​Gold-Plated Contacts: Gold resists corrosion and ensures stable electrical conductivity in humid or saline conditions.
• ​Strain Relief: Overmolded boots or flexible backshells absorb vibration and prevent cable flex fatigue.

​4. Signal Conditioning and Impedance Control

Maintaining consistent impedance across the cable assembly prevents reflections and signal distortion:

• ​Twisted Pair Cabling: Balances electromagnetic fields to reduce crosstalk in high-speed data transmission (e.g., Ethernet, CAN bus).
• ​Impedance Matching: Precision-controlled conductor spacing and dielectric materials ensure alignment with system requirements (e.g., 50Ω or 75Ω standards).
• ​Active Signal Boosters: For long-distance applications, amplifiers or repeaters compensate for attenuation in RF or fiber optic cables.

​5. Environmental Testing and Validation

Cable assemblies for harsh environments must undergo rigorous testing to verify performance:

• ​Temperature Cycling: Exposing assemblies to rapid temperature swings (-40°C to +125°C) to test material stability.
• ​Vibration and Shock Testing: Simulating conditions like those in automotive or aerospace applications (e.g., MIL-STD-883).
• ​EMI Immunity Testing: Validating shielding effectiveness using anechoic chambers and IEC 61000-4 standards.

​6. Application-Specific Customization

Tailoring cable assemblies to unique operational demands enhances reliability:

• ​Oil and Gas: Chemically inert materials like Teflon® and stainless-steel braiding for corrosive or explosive atmospheres.
• ​Aerospace: Lightweight, high-flex cables with MIL-DTL-38999 connectors for vibration-heavy environments.
• ​Medical: Silicone-jacketed, sterilizable cables compliant with ISO 13485 for MRI or surgical equipment.

​7. Maintenance and Monitoring Best Practices

Proactive measures extend the lifespan of cable assemblies in harsh conditions:

• ​Regular Inspections: Check for cracked jackets, corroded connectors, or shield fraying.
• ​Environmental Sealing: Apply silicone gels or potting compounds to vulnerable termination points.
• ​Predictive Analytics: Use sensors to monitor temperature, impedance, or EMI levels in real time.

​Case Study: High-Speed Data Transmission in Industrial Robotics

A robotics manufacturer faced signal loss in assembly lines due to EMI from motors and welding equipment. By implementing double-shielded cables with gold-plated D-sub connectors and integrating ferrite chokes, signal-to-noise ratios improved by 40%, enabling reliable 10 Gbps data transfer.
